Dashboard Help & FAQ

1. Getting Started

When you visit the dashboard, you see the login screen with two options:

The login screen — sign in with Telegram or continue as guest

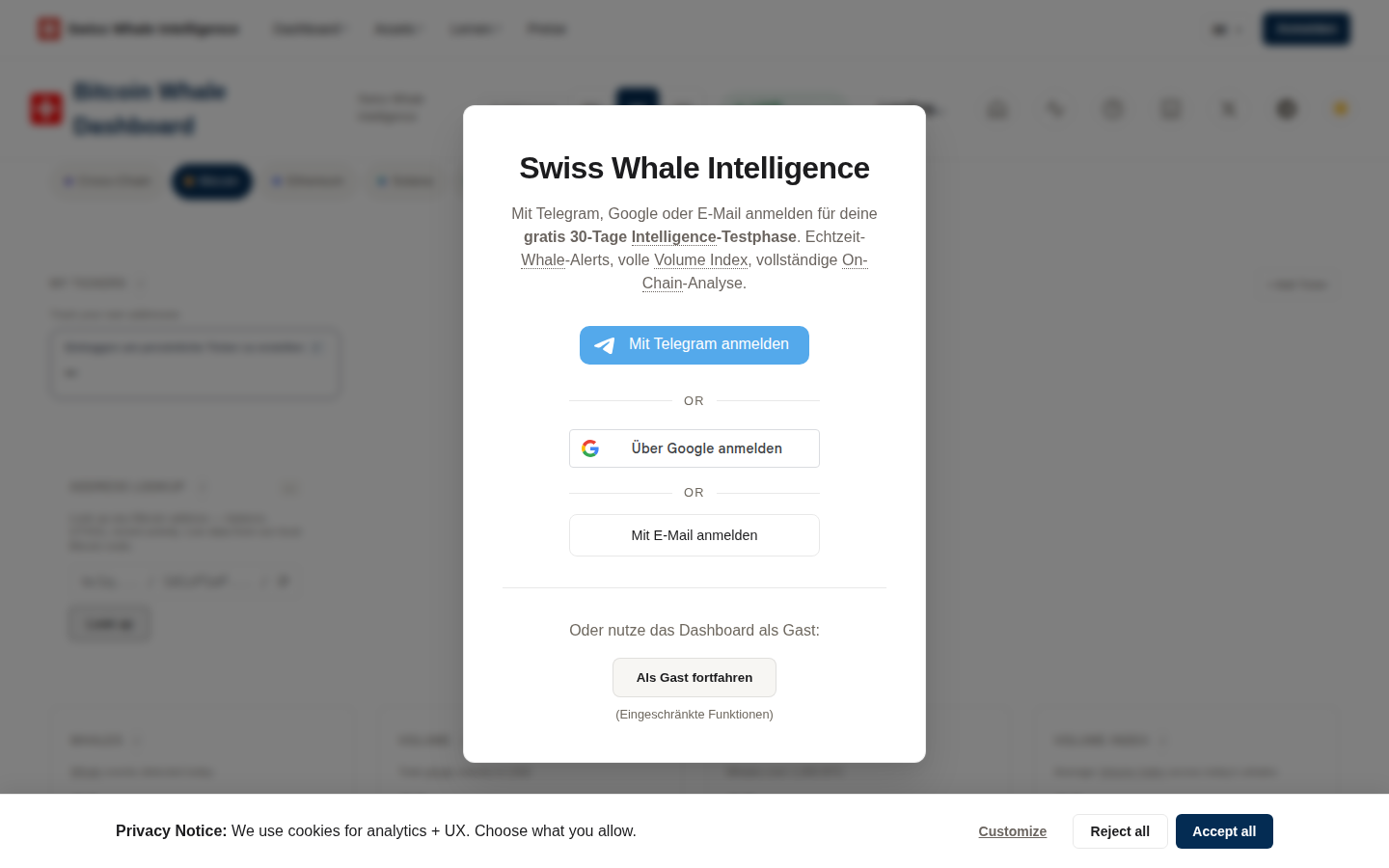

The login modal — free 30-day Intelligence trial with Telegram login

Option A: Sign in — Free 30-Day Intelligence Trial

Three ways to sign in, all activate the same free 30-day Intelligence Trial — no credit card, no payment, no commitment. After 30 days the account auto-steps-down to Observer (free permanent), no auto-charge.

• Telegram (1 click): the official Telegram Login Widget. Fastest way in.
• Google (1 click): Sign in with Google — only your Google sub-id and email are stored.
• Email + Password: classic email signup. Verification email arrives within ~30 seconds.

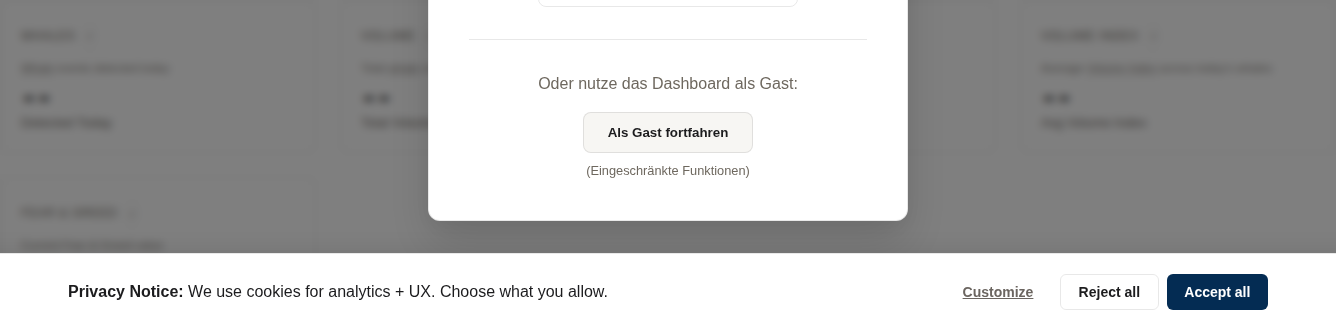

Option B: Continue as Guest (Free Mode)

Use the dashboard without an account. You get access to all charts and statistics, but the whale feed shows delayed (3h) and rounded data. You can upgrade to Intelligence Trial at any time via Telegram, Google, or email.

Stay Updated: Alerts Across Platforms

Swiss Whale Intelligence delivers alerts across multiple platforms:

• Bluesky: @btcwhalealerts.com — 5 custom feeds (All Alerts, Exchange Inflows, Exchange Outflows, Mega Whales 1000+ BTC, High Impact)
• Telegram: @btcwhalealerts (free) and @SwissWhalePremiumBot (premium with signed analysis links)
• Discord: Join server (DE/EN/ES channels, free and premium alerts)

2. Dashboard Overview

Here is what the dashboard looks like in Free and Premium mode. Both have access to all charts and stats — the key differences are in the Whale feed (data freshness, detail level).

The dashboard uses a clean light theme with IBM Plex Mono for numbers and addresses. All pages — including alert detail pages, whale profiles, and public TX pages — share the same consistent design.

Free / Guest Mode

Premium Mode

Left: Free mode with upgrade banner. Right: Premium with "REAL-TIME" badge and full data.

3. Real-Time Stats

The top rows show key metrics at a glance. These are identical in Free and Premium.

Whale count, volume, mega whales, Volume Index, BTC price and 24h chart" class="screenshot" loading="lazy">

Stats overview: key metrics + BTC price with 24h chart

BTC current price, 24-hour average with high/low, and price chart with whale event overlay

BTC Price Row

Current Price — latest BTC/USD. 24h Average — mean price with High (H) and Low (L) markers. The 24h chart plots BTC/USD as a line with whale events as colored dots overlay.

4. Price & Whale Overlay

The 24h price chart overlays whale transactions as colored dots directly on the price line. This lets you visually check whether whales tend to move BTC before, during, or after price swings.

Charts area: Exchange flows (top) and whale activity (bottom)

5. Exchange Flow Analysis

One of the most valuable on-chain indicators. Tracks how much BTC moves to and from known exchange addresses.

• Inflows (red bars) — BTC sent to exchanges. Often indicates intent to sell.
• Outflows (green bars) — BTC withdrawn from exchanges. Typically indicates accumulation or cold storage.
• Net flow + direction badge — Difference between outflows and inflows, labeled outflow-dominant / inflow-dominant / balanced.

Toggle between 7d, 30d, and 90d using the buttons in the top-right corner. The summary shows totals for Inflows, Outflows, and Net in BTC.

Exchange Flows: 90-day view with inflow/outflow bars and cumulative Net Flow line

7-day exchange flow view with inflow (red) and outflow (green) bars

Cumulative Net Flow Line

A line overlaid on the bar chart shows the cumulative net flow over the selected period. This reveals the long-term trend:

• Rising green line — Sustained outflows over time (outflow-dominant trend)
• Falling red line — Sustained inflows over time (inflow-dominant trend)

The right Y-axis shows the cumulative scale in BTC.

Exchange Reserves Trend

Exchange Reserves Trend: cumulative net flows (purple area) with daily net bars (red/green)

A dedicated chart showing cumulative net flows as a proxy for exchange reserve changes over time. This approximates what services like Glassnode charge for.

• Purple area line — Running total of net inflows (inflows minus outflows) over the period
• Daily bars — Red bars = net inflow day (to exchange), green bars = net outflow day (from exchange)
• Trend label — "Accumulating" (more BTC leaving exchanges) or "Distributing" (more BTC entering)

Toggle between 30d, 90d, and 1y views. Based on 133K+ tracked exchange flows since September 2020.

Per-Exchange Reserves (Binance)

An "All Exchanges / Binance" toggle on the same chart switches to per-exchange reserves. Currently only Binance is wired up — Coinbase, Kraken, and others will follow as their address coverage grows.

Methodology

Per-exchange reserves are calculated as the cumulative net flow of BTC into and out of identified Binance addresses:

• Inflow = transactions where a non-Binance address sends BTC to a Binance address.
• Outflow = transactions where a Binance address sends BTC to a non-Binance address.
• Net flow = inflow − outflow per day.
• Cumulative net = running sum over the selected period.

Address Identification

Binance addresses come from btc_entity_labels, populated by two methods:

• Curated labels (8 addresses) — from public disclosures and Proof-of-Reserves attestations.
• Cluster-traced labels (4 addresses) — derived from on-chain transaction patterns: addresses with high direct-counterparty volume to known Binance Cold wallets, confidence 0.78–0.92. Methodology see audit/exchange-identification.md.

Total: 12 Binance addresses, average confidence 0.89.

Filters Applied

• Self-Sends excluded — operational change-output sweeps (sender = recipient) don't represent real reserves change. Auto-filtered by the in/not-in logic of inflow/outflow definitions.
• Internal Transfers excluded — BTC moving between two identified Binance addresses doesn't change Binance's total reserves. The query explicitly excludes these via "sender NOT IN (binance) AND recipient IN (binance)" for inflow (and mirrored for outflow).

Limitations

• Coverage is not exhaustive — Binance operates many more wallet addresses than the 12 we've identified. We see a representative subset, not Binance's total balance.
• Net-flow trends are reliable; absolute balance numbers are not. Use the chart for direction-of-flow analysis, not for "How much does Binance have on-chain?".
• Confidence < 1.0 means some attribution uncertainty. The 4 cluster-traced addresses have 0.78–0.92 confidence. If one turns out to be a non-Binance address, the per-day numbers shift by that address's share.
• Public mempool only — internal Binance transactions that never broadcast on-chain are invisible. Custodial-only-database moves don't show up.

6. Whale SOPR

SOPR chart with profit/loss line and neutral signal" class="screenshot" loading="lazy">

Whale SOPR: green segments = selling at profit, red = selling at loss, dashed line = breakeven

Shows whether whales are selling at a profit or loss. For each whale "sell" transaction (to exchange), the system estimates the cost basis from when that address last received BTC.

• SOPR > 1 (green) — Whales selling at profit. At extremes, this can signal market tops
• SOPR < 1 (red) — Whales selling at a loss (capitulation). Often signals bottoms
• SOPR = 1 (dashed line) — Breakeven. Acts as support in bull markets, resistance in bear markets

Signal badges: "Profit Taking" (avg SOPR > 1.02), "Capitulation" (avg SOPR < 0.98), or "Neutral". Calculated daily from whale exchange-bound transactions. Toggle 30d/90d.

Realized Profit (Bar Chart)

The green/red bars show the absolute realized profit in USD per day. This is calculated as (sell_price - buy_price) × BTC amount for each whale sell transaction.

• Green bars — Net profit day: whales realized gains selling at higher prices than their cost basis
• Red bars — Net loss day: whales sold at a loss (capitulation)
• Scale is in millions USD ($M) on the right axis

This is equivalent to Glassnode's "Realized Profit/Loss" metric (Professional tier, $39/month) — available here for free.

7. Miner Balances

Tracks BTC holdings of known mining pool addresses over time. When miners' balances decrease, it indicates outflow to exchanges or buyers. When balances increase, miners are retaining production.

• Stacked area chart — Each color represents a different mining pool (Foundry USA, AntPool, F2Pool, ViaBTC, Marathon, etc.)
• Total balance — Combined BTC holdings across all tracked pools
• Declining total — Miners are net-spending (outflow pattern)
• Rising total — Miners are net-receiving (inflow pattern)

Based on 15+ known mining pool addresses. Updated nightly. Toggle 30d/90d.

8. HODL Waves

A stacked area chart showing how old the UTXOs (unspent coins) of top whale addresses are. This is the whale-focused version of Glassnode's HODL Waves indicator.

• Color bands — Each band represents an age bucket: 1 day, 1 week, 1 month, 3 months, 6 months, 1 year, 2 years, 3 years, 5+ years
• Growing older bands — Whales are increasing dormancy (HODL pattern)
• Growing younger bands — Whales are moving/spending coins (potential distribution)

Based on ~300 whale addresses with over 100 BTC in estimated holdings. Updated nightly via our Bitcoin full node's UTXO index. Toggle 30d/90d.

9. Fear & Greed

Two side-by-side charts that show market sentiment and asset dominance trends.

Fear & Greed Index (left) and BTC/ETH Dominance (right)

Fear & Greed Index from alternative.me — ranges from 0 (Extreme Fear) to 100 (Extreme Greed). Color-coded dots: red ≤25, orange ≤50, yellow ≤75, green >75. Toggle between 7d, 30d, and 90d.

BTC/ETH Dominance shows market share trends. BTC dominance rising often signals capital rotating from altcoins to Bitcoin (risk-off). Toggle 7d/30d/90d.

BTC & ETH Dominance — Detail

BTC and ETH dominance show each coin's share of the total crypto market cap (sourced from CoinGecko). The two values do not sum to 100% — the rest is altcoins and stablecoins. Rising BTC dominance with falling ETH dominance often coincides with risk-off rotations from altcoins to BTC. Sustained shifts of more than 5 percentage points over weeks have historically preceded broader market regime changes.

10. Community Sentiment

Aggregated market sentiment from seven independent sources. Each post, headline, or index reading is scored on a scale from -1.0 (very bearish) to +1.0 (very bullish). The chart shows one thin line per platform plus a thick Overall line which is weighted by confidence and mention volume.

Current Value is the confidence-weighted sentiment across all platforms over the last 6 hours. The colored badge indicates Bullish (≥+0.3), Neutral, or Bearish (≤-0.3). Toggle 7d / 30d / 90d.

Sources

Each source also contributes an individual confidence (0–1, lower for ambiguous or sparse data) and impact score (scaled by engagement where available). These weights flow into the Overall line.

11. Orderbook Depth

Live orderbook data from Binance, collected every minute. Shows bid/ask liquidity at ±1% from current price.

Orderbook Depth: green bars (bids), red bars (asks), ratio line

Green bars (up) = Bid depth (buy orders within 1%). Red bars (down) = Ask depth (sell orders within 1%). The blue line shows the Bid/Ask ratio. Toggle 6h, 12h, or 24h.

The summary shows: current bid/ask depth in BTC, spread percentage, and a signal badge (bid heavy / ask heavy / balanced).

12. Whale Activity Chart

Shows daily Whale transaction volume (BTC) and transaction count over time. Helps you spot trends — are whales getting more active or cooling down?

Switch between 7d, 30d, and 90d timeframes. The summary line shows average daily transaction count and volume.

Dual-axis chart: BTC volume (bars) and transaction count (line) over 7 days

13. Funding Rate & Open Interest

Live derivatives data from Binance Futures. Shows how leveraged the market is and in which direction.

Funding Rate bars (green = positive, red = negative) + Open Interest line

Funding Rate is paid every 8 hours between longs and shorts. Positive = longs pay shorts (market is long-heavy). Negative = shorts pay longs.

Open Interest shows total outstanding futures contracts in BTC. Rising OI + rising price = strong trend. Rising OI + falling price = potential liquidation cascade.

14. Ethereum Whale Activity

Same dual-axis chart as BTC Whale activity, but for Ethereum. Shows daily ETH whale volume (bars) and transaction count (line). Toggle 7d/30d/90d.

ETH Whale Activity: volume bars + transaction count line

15. Ethereum Analytics

Four complementary charts that extend the ETH coverage from "whale-level activity" to full market context — analogous to the BTC on-chain suite.

ETH Exchange Flows & Reserves

Derives exchange inflows/outflows from the entity label table (~130 curated exchange addresses for Binance, Coinbase, Kraken, OKX, Bitfinex, Bybit, Gate, HTX, Upbit, Crypto.com and more). Only transactions where the counterparty is not also a known exchange are counted, so wallet rotations between exchange hot wallets don't pollute the signal.

• ETH Exchange Flows — daily inflows (red, to exchange) vs outflows (green, from exchange). Toggle 7d/30d/90d.
• ETH Exchange Reserves — cumulative net flow as a proxy for exchange balance trend. Rising = accumulation on exchanges (potential sell pressure); falling = withdrawals (potential hodling). Toggle 30d/90d/1y.

ETH Staking Pool Balances

Daily snapshot of ETH held by the largest Liquid Staking and CEX staking protocols. Source: DeFiLlama TVL / live ETH price. Tracked: Lido, Binance Staked ETH, ether.fi, Rocket Pool, StakeWise, Renzo, Coinbase cbETH, Frax Ether, and more as they become available. This is the ETH analogue to Miner Balances for BTC.

ETH Gas & DEX Volume

Dual-axis chart combining fast gas price (gwei, Blocknative API) with daily DEX volume (aggregate of Uniswap, Curve, 1inch, Balancer etc. via DeFiLlama). Gas spikes align with periods of high DeFi activity; persistent low gas often signals market-wide cooldown. Toggle 24h/72h/7d.

16. Dashboard Personalization

Floating Layout (Drag & Collapse)

Click ✎ Edit layout in the header to enter layout-edit mode. In this mode:

• Drag any chart card to a new position — reorder top-level cards or within 2-column rows.
• Hover any card (no edit mode needed) to see a small − button: click to collapse the chart body to just its title. Click again to expand.
• Click ↺ Reset to restore the default layout and re-expand all cards.

The layout (both card order and collapsed state) is saved in your browser's localStorage. No server sync — layouts are device-specific, which means you can have different setups on desktop vs mobile.

Custom Tickers — Live Mini-Widgets

Above the stats row you'll find the My Tickers bar. Click + Add Ticker to create a live indicator card. Available types:

Each ticker shows a color-coded status: triggered, ⚠ warning (close to threshold), ✓ OK, or — inactive. Values refresh every 30 seconds. Click any ticker to edit or delete it.

Telegram Integration

Tickers share the same rule engine as Telegram /track alerts. Every ticker you create on the dashboard also generates a push notification when triggered (Premium / Trial users). Conversely, you can make any Telegram /track rule visible as a dashboard ticker:

/track pump 2 1h          # create alert (Telegram only)
/mytracks                 # see all rules with their IDs
/track dashboard 5 on     # also show rule #5 as a dashboard ticker
/track dashboard 5 off    # hide from dashboard (Telegram alert stays active)

17. Multi-Coin Cards

At-a-glance view of 16 major cryptocurrencies with current price, 24h change percentage, and a mini sparkline showing the 24h price trend.

16 coins with price, 24h change, and sparkline

Green arrows and sparklines indicate positive 24h performance, red indicates negative. Coins tracked: BTC, ETH, SOL, BNB, XRP, SUI, ADA, DOGE, AVAX, LINK, NEAR, TRX, ATOM, ARB, OP, XLM.

18. Live Whale Feed

The main data table is where Free and Premium diverge most. Here's a direct comparison:

Whale feed in Free mode" loading="lazy">

Free Mode

Premium Mode

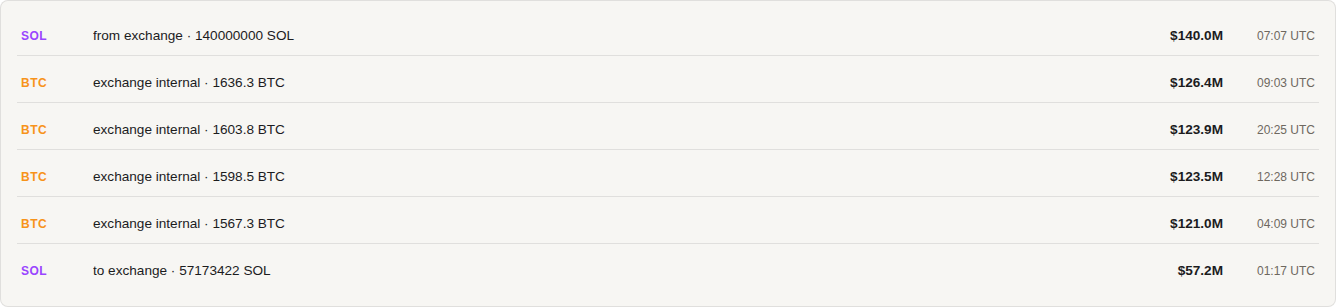

Free: masked addresses, rounded amounts, 3h delay. Premium: full addresses, exact amounts, real-time.

Updated table layout with clickable TX links, entity labels, flow type tags, and volume indices

Feed Columns Explained

Premium Feed in Detail

Premium feed: full addresses, exact BTC amounts, volume indices, flow types, and clickable analysis links

Flow Type Categories

Each whale transaction is classified by direction:

• to_exchange — BTC sent to a known exchange address (often labeled selling pressure).
• from_exchange — BTC withdrawn from an exchange (often labeled accumulation).
• wallet_to_wallet — transfer between non-exchange addresses (OTC, cold storage rotation).
• exchange_to_exchange — inter-exchange transfer (market makers, custody rotation).
• self_send — internal change-output sweep (same address as sender and recipient — operational, not a real cross-address flow, excluded from headline counters).

The Flow Types donut on the dashboard shows the distribution of these categories over the selected window.

19. Transaction Details

Premium users get signed links from the whale feed that open a comprehensive analysis page for each transaction. These pages pack a lot of information:

Full alert page: header badges, amount, Fee Rate, timing, mempool timeline, and price window chart

Header & Badges

The top of every alert shows the full TXID (with a copy button), plus status badges:

• Status confirmed / unconfirmed — Whether the TX is included in a block
• Score — Quality score (0–10) based on amount, Volume Index, and flow significance
• Entity recipient — Confidence percentage that the recipient is a known entity (e.g. exchange). Hover for a detailed explanation of how the confidence is calculated (address reuse patterns, transaction graph clustering, known exchange databases)
• Block number — Clickable link to the block explorer (see below)

Info Cards

BTC/USD Price Window

Cluster heuristics section" class="screenshot" loading="lazy">

Price window (±4h), post-impact chart (+24h), cluster & heuristics, and external links

A ±4 hour price chart centered on the transaction time with OHLC data (Open, High, Low, Close). This lets you see exactly where in the price action the whale made their move.

Price After Move (Post-Impact)

Below the main price chart, a second chart shows the 24 hours after the transaction. This answers the key question: did the price go up or down after this whale moved?

• Green chart — Price increased after the move (positive return)
• Red chart — Price decreased after the move (negative return)
• Shows exact percentage return (e.g. +4.91%), price at TX time, and latest price
• Only visible for transactions older than a few hours (needs post-move price data)

On-Chain Balance

For addresses that our Bitcoin full node can resolve, the alert page shows real-time UTXO balance data for both sender and recipient:

• Balance — Current confirmed BTC balance of the address
• UTXO Count — Number of unspent transaction outputs (fewer = more consolidated wallet)
• Transaction Count — Total number of on-chain transactions for this address

This data comes directly from our local electrs UTXO index connected to our Bitcoin full node — no third-party API, no delays.

Cluster & Heuristics

Shows the sender and recipient addresses with known labels. The Advanced (flags) section can be expanded for additional transaction metadata and technical flags.

External Links

• Open in mempool.space — View the full TX on the mempool.space block explorer
• View original tweet — Link to the original alert post (if one was published)
• Integrity hash — SHA-256 hash for data verification

Similar Recent Alerts

Related whale transactions from the same sender or recipient within 90 days

Shows whale transactions involving the same sender or recipient within a 90-day window. Each card displays:

• Match type badge — "Same sender", "Same recipient", or "Same pair" (both match)
• Flow type — Outflow (from exchange), Inflow (to exchange), or Wallet→Wallet
• Entity label — Exchange name (Binance, Coinbase, etc.) when identified
• On-chain history — Additional transactions from our Bitcoin full node (via electrs UTXO index)

This helps you identify patterns: is this a one-off move, or does this whale regularly transact? Are the flows consistently in one direction?

Top Whale Blocks

Blocks with the most whale transactions in the last ~24 hours

Lists the blocks with the most whale transactions in the last 144 blocks (~24 hours). Click any block to open the block explorer modal.

20. Block Explorer Integration

Clicking a block number anywhere on the alert page opens an interactive block explorer modal:

Block modal: confirmations, fee rate histogram, and all whale transactions in the block

What the Block Explorer Shows

• Confirmations — Current confirmation count
• Fee Rate Histogram — Visual distribution of fee rates across all transactions in the block
• Whales in Block — Count of whale transactions detected in this block
• Filter buttons — Filter whale transactions by fee rate: All, Low, Med, High

Whale Transaction Table

Every whale transaction in the block is listed with:

The block explorer also links to mempool.space for the full block view.

21. Whale Address Profiles

Premium users can access detailed profiles for individual Whale addresses, linked from transaction detail pages.

Volume Index

The Volume Index (0–100%) measures how well-known an address is, based on transaction history, exchange-cluster association, and pattern analysis. Higher scores mean familiar/labeled addresses (exchanges, custodians, miners). Lower scores indicate uncatalogued addresses. Note: Volume Index is a measure of identification confidence — not of profitability. Well-known whales are typically already priced in by the market.

Whale address profile: holdings, history, hit rate, turnover, activity heatmap, and top events

Profile Overview Cards

Activity Heatmap

A hour-of-day vs. day-of-week heatmap showing when this address is most active. Useful for identifying routine transfers (e.g. daily at 15:00 UTC) vs. irregular activity.

Whale Fingerprint

Whale Fingerprint: behavioral pattern, direction bias, average TX size, and transaction frequency

A behavioral profile section that reveals how this whale typically operates:

Below the pattern cards, average price impact tables show what typically happens to BTC price 1h, 6h, and 24h after this whale buys or sells. Green values indicate price increases, red indicates drops.

Realized Value & MVRV

A Glassnode-style per-address MVRV analysis using real UTXO data from our Bitcoin full node:

• Avg cost basis — The average price this whale paid for their BTC, calculated from UTXO creation timestamps
• Realized value — Total USD value at the time each UTXO was acquired
• Market value — Current USD value of all holdings at today's price
• MVRV ratio — Market / Realized. Above 1.0 = sitting on profit (green), below 1.0 = underwater (red)
• Unrealized P&L — Percentage profit or loss vs. cost basis

This reveals whether a whale is likely to sell (high MVRV = large unrealized profit) or hold (low MVRV = would sell at a loss).

Impact Sparkline

A sparkline comparing buy vs. sell price impact across 1h, 6h, and 24h timeframes.

Top Events

The largest transactions from this address, filterable by Buy/Sell, with BTC amounts and timestamps.

Address Actions

The profile header includes buttons to copy the address, set a label, adjust quality rating, and mark as frontrunner for monitoring.

22. Public Transaction Pages

Every whale transaction also has a public page at /tx/<txid>, accessible without login:

Public TX page: flow type, amount, fee, addresses, and links to mempool.space and dashboard

The public page shows:

• Flow type badge (wallet-to-wallet, to-exchange, from-exchange)
• BTC amount, score, and fee rate
• Sender and recipient addresses
• Block height and first-seen timestamp
• Links to mempool.space, the live dashboard, and Bluesky

23. BTC Indicator Charts

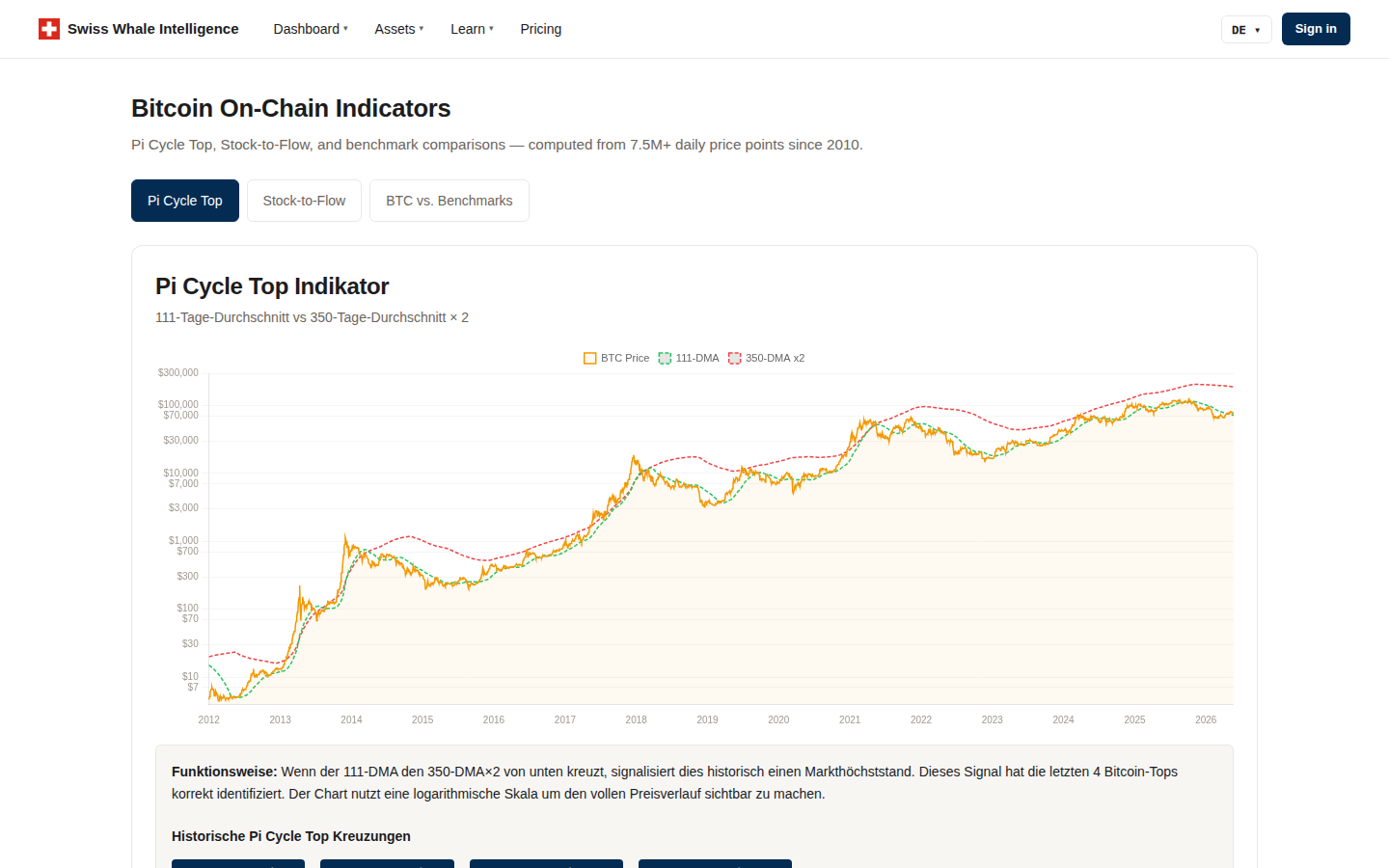

The /charts page provides Bitcoin on-chain indicators powered by our own price database (7.5M+ datapoints since 2009). Click the chart icon () in the dashboard header to access it.

Pi Cycle Top Indicator

Pi Cycle Top Indicator chart" class="screenshot" loading="lazy">

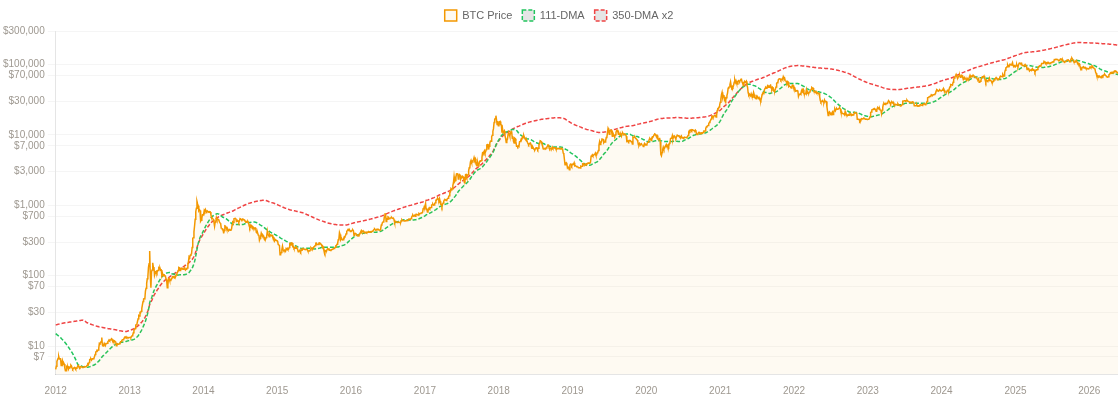

Pi Cycle Top: 111-DMA (green) vs 350-DMA×2 (red) on logarithmic scale

Plots the 111-day moving average against the 350-day moving average × 2 on a logarithmic price chart. When the 111-DMA crosses above the 350-DMA×2, it has historically signaled the exact top of every Bitcoin bull cycle:

• April 2013 — $142
• December 2013 — $985
• December 2017 — $19,221
• April 2021 — $60,056

The page shows the current gap between the two lines. A large gap means we are far from a cycle top; as the gap approaches 0%, caution is warranted.

Stock-to-Flow Model

Stock-to-Flow model chart" class="screenshot" loading="lazy">

Stock-to-Flow: actual price (orange) vs model price (purple) on logarithmic scale

Measures Bitcoin’s scarcity by comparing existing supply (stock) to annual new production (flow). After each halving event, the flow halves and the S2F ratio doubles. The model price is calculated as:

price = e^(3.21 × ln(S2F) - 1.6)

The chart shows the actual BTC price against the S2F model price on a logarithmic scale. When the price is below the model line, S2F considers Bitcoin undervalued; above it, overvalued.

BTC vs Traditional Assets Free

Cumulative-return overlay comparing Bitcoin against the assets a private banker would actually compare it to: S&P 500 (SPY ETF, total return), Gold (GLD ETF), US Total Bonds (AGG ETF), NASDAQ, the raw S&P 500 index (price-only, no dividends), and a synthetic 70/30 portfolio (70% SPY + 30% AGG, monthly rebalanced — the standard conservative-investor baseline).

All series are normalized to 100 at the start of the selected window. A line at 130 means +30% cumulative. Period toggle lets you compare 90 days, 1 year, 3 years, 5 years, or max (since 1993 for the S&P).

This is intentionally an honest comparison: we publish BTC’s actual performance versus traditional assets without cherry-picking. Past observations only — not a forecast or trading signal.

Data sources: ETF prices from Yahoo Finance via yfinance (daily close, dividend-adjusted total return for ETFs). BTC from our own minute-resolution price database. The raw S&P 500 index (^GSPC) is shown separately so you can see the dividend-adjustment delta.

24. Custom Alert Tracker

Premium users can set up custom alert rules via the Telegram Bot. When an event matches your rule, you get an instant push notification.

Available Trackers

Latency by tracker type

Three rule families — address_watch, whale_inflow and whale_outflow — are wired to our Mempool Radar service, which subscribes to the public Bitcoin mempool via mempool.space WebSocket and forwards an alert as soon as the transaction is broadcast (typically 1–3 seconds after relay, before block confirmation). For inflow/outflow we also subscribe to the top-N most-active labeled exchange addresses, so any transaction touching those is dispatched in real time.

Mempool transactions can be replaced (RBF) or evicted before confirmation, so the alert text always says “in mempool” vs “confirmed in block” explicitly. We never claim a tx is final until it’s in a block. The same rule won’t fire twice for the same tx (mempool detection then confirmation) — the SQL cooldown on each rule absorbs the duplicate.

Dormant-wallet checks run every 10 minutes on confirmed blocks. Price pump/dump checks run every 1 minute against the live crypto_prices feed.

Managing Trackers

• /track — with no arguments, prints a friendly setup guide with copy-paste examples
• /mytracks — list all your active trackers with IDs and trigger counts
• /untrack 3 — remove tracker #3
• /track dashboard 5 on — pin a tracker so it appears as a live ticker on your dashboard

You can have up to 10 active trackers. Each tracker has a 60-minute cooldown by default. The cooldown SQL filter ensures the same rule never fires for the same event twice across the mempool and confirmation paths.

25. Address Lookup

The dashboard ships a public any-address lookup widget at the top of the page. Drop in any Bitcoin address (not just our tracked whales) and you get live balance, transaction count, mempool stats, and — depending on tier — recent transactions and unspent outputs. This is the differentiation feature versus Glassnode and CryptoQuant, neither of which exposes raw per-address lookups in their UIs.

Tier limits

How the data flows

1. DB cache (5-minute TTL) — if the address was looked up recently, response is <5ms regardless of upstream availability.
2. electrs primary — our own Electrum-protocol server reading directly from our local Bitcoin Core full node. No third-party rate-limit, byte-perfect data.
3. mempool.space fallback — if electrs times out (1.5s budget) or hits its circuit-breaker, we proxy to mempool.space's public REST API. Globally rate-limited to 5 QPS shared across all our services so we don't hammer the upstream.

Each response includes a summary._source field telling you which path served the data: electrs | mempool.space | (implicit cache when not annotated). This is transparency, not a leak — consumers should know if they're reading our own infra or a fallback.

What it does not include

The lookup endpoint is a pure on-chain proxy. It does not include our entity labels, Cluster membership, volume-index calibration, or whale-trade history — those are reserved for tracked-whale endpoints (/v1/address/{addr}) which only resolve addresses already in our metrics cache. If you need both raw chain data and our enrichment, query both endpoints and merge client-side.

API tier (Research, 149 CHF/mo)

For unlimited programmatic access, the Research API exposes GET /v1/address/{addr}/lookup with Bearer auth (token format swi_live_<keyid>_<secret>). Query params utxos=1, txs=1, tx_limit=N control payload depth. Full OpenAPI 3.0 spec at /v1/openapi.json. See section 19b for tier signup.

Free for academic researchers

If you have a verified academic email (.edu, .ac.uk, .uni-*, Swiss universities, etc.), apply via the Academic Tier signup on the apex landing for 12 months free Research API access followed by a permanent 50% discount (74.50 CHF/month) thereafter. Magic-link verification, no credit card, no manual approval. Aimed at academic publications, journalist forensics, and grant-funded research.

26. Cross-Chain Whale Pulse Radar

The Cross-Chain Whale Pulse Radar on /dashboard shows 5 dimensions of Whale activity for each of the 5 tracked assets (BTC, ETH, SOL, USDT, Gold) on a single spider chart, normalized to each asset's own 30-day baseline.

The 5 dimensions are:

• TX Volume (24h) — total whale-tier transfer volume vs. 30-day baseline
• Exchange Inflow — net To Exchange (Inflow) pressure (bearish signal when high)
• Exchange Outflow — net From Exchange (Outflow) withdrawals (bullish accumulation signal)
• Cluster Concentration — share of activity from top-10 Clusters
• Dormant Wake-ups — old-coin movements per UTXO age

A larger polygon = more whale activity overall. Lopsided polygons (one dimension dominating) reveal cross-asset divergences — e.g. ETH inflow spike while BTC outflows = rotation signal. Hover any vertex for the raw 24h number and the 30-day percentile.

Refreshes hourly from PostgreSQL aggregates. Available to all visitors (Free + Premium).

27. Bubble Timeline

The Bubble Timeline on the per-asset dashboards plots every Whale-tier transaction as a circle on a 24h time-axis. Bubble size = transaction volume (USD), bubble color = flow type (To Exchange (Inflow) red, From Exchange (Outflow) green, wallet-to-wallet blue).

It's the visual answer to "what's happened in the last day, at a glance?" — you can spot:

• Bursts of red = sell-pressure clusters (multiple whales depositing to exchanges within minutes)
• Single mega-bubbles = isolated Mega Whale moves (≥1000 BTC equivalent)
• Quiet stretches = low-conviction periods, typical pre-news

Click any bubble to open the full transaction detail page (Premium: signed alert URL with on-chain analysis; Free: public /tx/ summary).

Available on BTC, ETH, SOL dashboards. Updates every 30 seconds for logged-in users, every 3 minutes for guests.

28. MVRV Distribution Heatmap

The MVRV Distribution Heatmap (Premium-only, on the ETH dashboard) shows the MVRV ratio of every tracked whale address as a color-coded heatmap — green cells = sitting on unrealized profit, red cells = under water at current price.

The heatmap is binned by:

• X-axis: UTXO age band (1w, 1m, 3m, 6m, 1y, 2y, 5y+)
• Y-axis: Cluster size (1-10 BTC eq., 10-100, 100-1000, 1000+)
• Color: median MVRV in that bin (red 0.5 → yellow 1.0 → green 2.5+)

Reading the chart: a bright-green band in the 1y+ age × 100-1000 size bin means mid-tier long-term holders are sitting on 2-3× unrealized gains — strong-hand cohort. If that band turns yellow within days, they're approaching break-even and may distribute.

Updates daily at 04:00 UTC. Powered by our 6.99M-entity cluster database + UTXO-age scanner.

29. Multi-Asset Dashboards

Beyond the main BTC dashboard, Swiss Whale Intelligence operates dedicated whale-tracking dashboards for 4 additional asset classes — all sharing the same chrome, design tokens, and live-feed pattern.

Each dashboard tracks asset-specific flows: USDT highlights Treasury Mint/Burn events (Tether issuance/redemption signals liquidity); Tokenized Gold tracks XAUT and PAXG supply changes as flight-to-safety indicators; ETH includes Validator balance shifts and DEX-vs-CEX flow split; SOL includes Liquid Staking pool movements.

The main /dashboard aggregate rolls all 5 assets into one Cross-Chain KPI view with the Pulse Radar.

All multi-asset dashboards share the SWI design system and Cookie/CSP/GA4 setup. Mobile-responsive with asset-tab strip.

30. Feature Comparison

Both modes have access to all charts, stats, and exchange flow analysis. The differences are in the whale feed and detail pages.

31. Subscription Tiers

Swiss Whale Intelligence has three tiers. All Telegram-login users start on a 30-day trial with full Intelligence features plus limited API access.

Why no API access on Intelligence? The 49 CHF Intelligence tier is optimized for analysts who live in the dashboard. Research API (149 CHF) adds programmatic access for engineers, academic researchers, and trading desks that need to pipe data into Jupyter, Pine Script, Quantpedia backtests or internal dashboards.

32. Open Trading Ledger

Every completed Kraken-bot trade is published with SHA256-verifiable CSVs. Two download variants are offered on swisswhaleintelligence.com/ledger/:

• Complete Lifetime Ledger (latest_all.csv) — all 697 trades since July 2025, ~100 KB. Every row: strategy, UTC timestamps, buy/sell prices, return %, fees, hold duration, exit reason.
• 90-Day Rolling Window (latest_90d.csv) — recent ~43 trades, for quick checks.
• Full Archive at /ledger/archive/ — 41 weekly PDFs + 9 monthly CSVs + 3 quarterly analytics PDFs, each with its own SHA256.

Integrity verification:

curl -O https://swisswhaleintelligence.com/ledger/latest_all.csv
curl -O https://swisswhaleintelligence.com/ledger/latest_all.csv.sha256
sha256sum -c latest_all.csv.sha256

Transparency note: Two historical strategies (whale_cluster, intraday_drawdown) are in the ledger but were deactivated in April 2026 because their 71% win rate had 4× asymmetric loss magnitude, netting overall negative. Published anyway — we show all trades, including the losing ones.

33. Authentication & Privacy

Telegram Login (Dashboard)

Login uses the official Telegram Login Widget. When you click "Log in with Telegram", Telegram sends us a signed payload (user ID, name, photo URL, auth_date, hash). We verify the signature against our bot token — if it doesn't match, login is rejected.

After verification, the server sets a single httpOnly Secure SameSite=Lax cookie (swi_session, 90-day expiry). No authentication data is stored in localStorage. XSS attacks cannot read the cookie, and the user_id never appears in URLs, referrers, or logs.

API Authentication

REST API calls require a Bearer token created on the API Access page. Format:

Authorization: Bearer swi_live_<keyid>_<secret>

Keys are bound to your tier: Trial → 10k/month, Research → 100k/month. Rate limits are enforced per-key and returned as response headers:

X-RateLimit-Limit-Monthly:  100000
X-RateLimit-Remaining:      87341
X-RateLimit-Reset:           1776562800

Optional HMAC signing is available for hardened authentication workflows — sign the request body + URL with your HMAC secret and include X-SWI-Signature: sha256=....

Data we collect

• Telegram: user ID, first name, username (all optional on Telegram side)
• Stripe: name, billing country + last 4 digits of card (Stripe-hosted, never on our servers)
• Google Analytics 4 (consent-gated): aggregate page views, no personal identifiers
• Server logs: IP hashes (30-day retention), no raw IPs stored

Full data policy: swisswhaleintelligence.com/privacy/ (revDSG + GDPR compliant).

34. MCP Server (AI Assistant Access)

The same on-chain data you see on this dashboard is also available to AI assistants — Claude, Cursor, ChatGPT, Continue.dev, Zed — through the Model Context Protocol (MCP). Once connected, you can ask your assistant questions like "check whether the recent 1,200 BTC outflow from Binance came from a known cold-wallet Cluster" and it will call our tools live, no copy-paste, no API key management.

What you get over MCP

• 39 specialized tools — whale lookups, exchange flow analysis, HODL Waves, SOPR, MVRV per address, miner balances, frequency context, cohort breakdowns, transaction details, entity search, and multi-asset tools for ETH, SOL, USDT, Gold
• 3.85M canonical clusters from common-input-ownership analysis (Meiklejohn-style)
• 1.1M+ entity-labeled addresses — exchange hot/cold wallets, custodians, miners, OTC desks
• BTC + ETH coverage across both chains in a single MCP server
• OAuth 2.1 click-to-install — no API keys to copy-paste

Tier mapping (same as the dashboard)

Quick start

1. Open swisswhaleintelligence.com/mcp/
2. Pick your client (Claude.ai, Claude Desktop, Cursor, Continue.dev, Zed) and follow the click-to-install button
3. Sign in with your existing Telegram-linked account — tier is detected automatically
4. Start asking questions in your AI chat — the assistant will call whale_lookup, whale_exchange_flows, whale_tx_detail etc. on demand

Full documentation, tool reference, install guides for all 5 clients, and a workflow cookbook: swisswhaleintelligence.com/mcp/

35. Frequently Asked Questions

36. Glossary

A reference of every technical term used across the dashboard, alert pages, and whale profiles.

Blockchain & Bitcoin

Whale Intelligence

Market & Trading Indicators

Benchmark Comparison — Traditional Assets

Platform Terms

37. Cookbook (Playbooks)

The Cookbook is a library of practical playbooks — step-by-step walkthroughs that chain existing dashboard features into useful workflows. Every recipe is grounded in features that already exist on this platform.

Eight recipes ship in the initial library:

1. Spot whale accumulation before a rally — Exchange Reserves + Live Feed + HODL Waves + Whale Cluster reading
2. Read an exchange's reserve health — Inflow/Outflow + Funding + OI cross-check
3. Track a cross-chain rotation — Cross-Chain Dashboard + Bubble Timeline + Bluesky feed
4. Decode a whale wallet's story — /whale/<addr> + MVRV + Whale Fingerprint
5. Use the daily brief like a Bloomberg morning meeting — /daily/ workflow
6. Set up a custom alert on a specific whale — Telegram /track command
7. Read tokenized-gold flows as a macro fear gauge — XAUT + PAXG dashboards
8. Ask the data: using whale_explain — AI chat + MCP tool

Each recipe takes 2–7 minutes to read + execute. All trilingual (EN/DE/ES). Underlined terms link to the glossary. Use the cookbook as your reference when you want to do something with the dashboard data rather than just browse it.

Available to all visitors. Indexed for SEO. Updates as new playbooks are added.

38. Analysis Guide

Each tool on the dashboard reveals a different dimension of the Bitcoin market. Here's what each one tells you, and how to combine them for deeper insights.

What Each Tool Shows

Combining Tools for Analysis

The real power comes from reading multiple signals together. Here are practical analysis workflows:

Common Pitfalls
